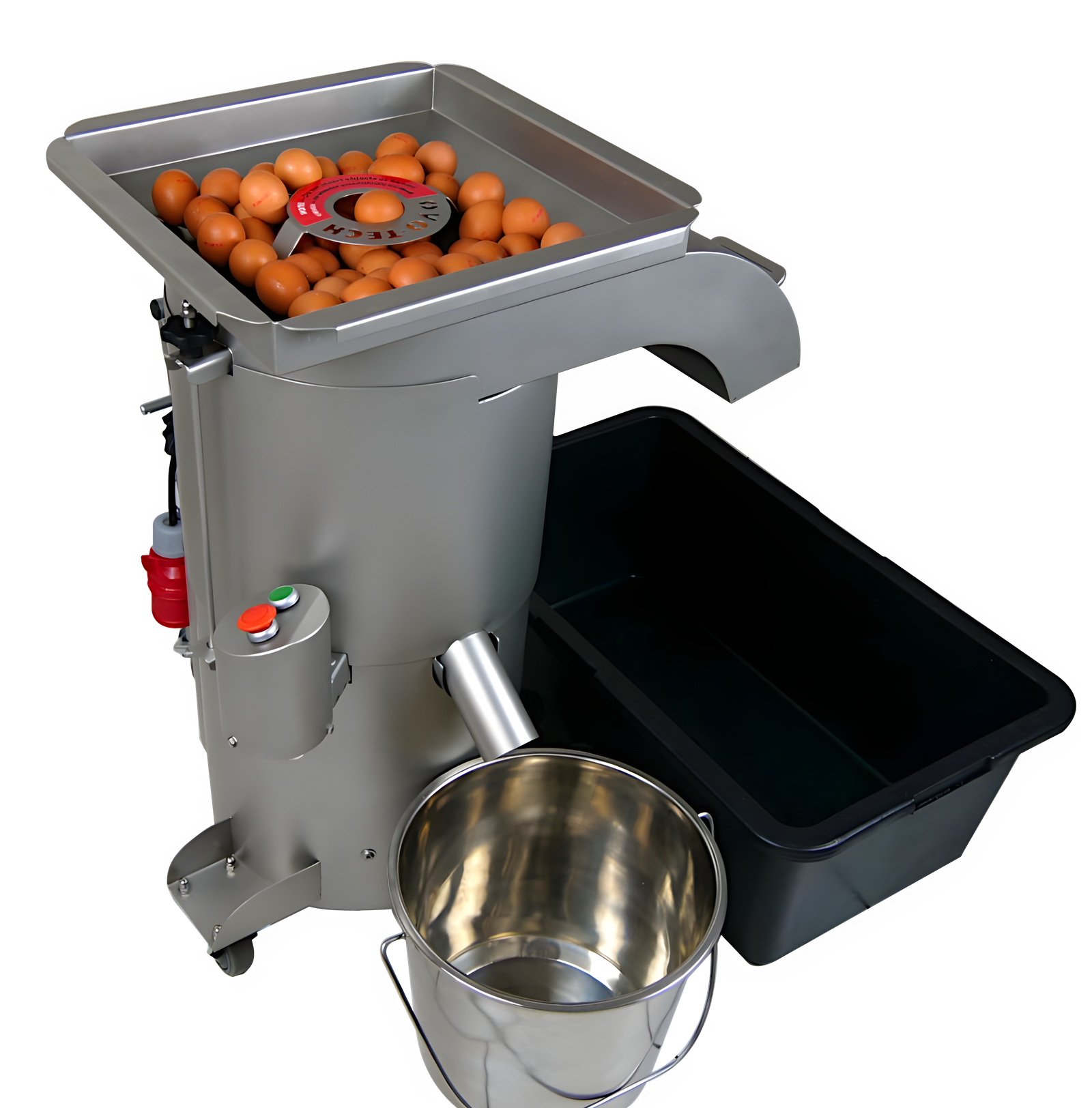

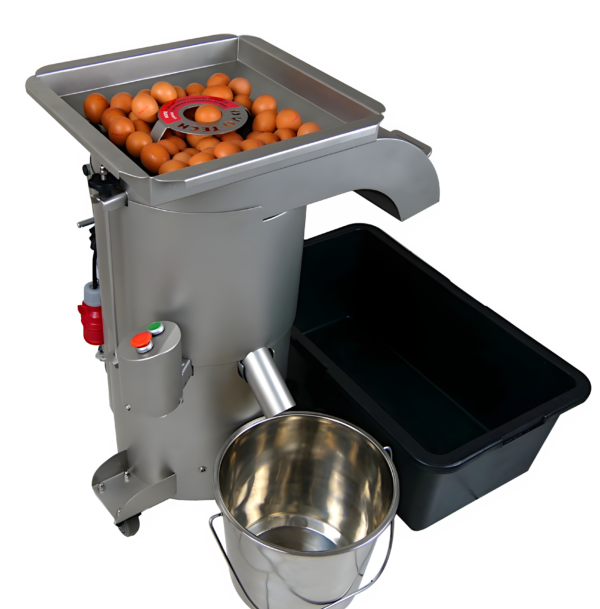

Egg Breaker OVO-TECC UDTJ 150

Features:

  • CAPACITY: 20 000 / max. 30 000 eggs/hour
  • DIMENSIONS: 604 mm x 684 mm x 910 mm
  • WEIGHT: 80 kg
  • REPLACES: 15-23 people
  • COMPATIBILITY: MX-2/4, UX-2/4, PS-1
  • COMPRESSED AIR: n/d
  • WATER: n/d
  • MINIMAL WORKSPACE: 1500×1500 mm [59×59 in.]
  • OPERATED BY: 1 person
  • STAINLESS STELL PARTS
  • Electricity : 1.1 kW 400 V 3/N/PE 50/60 Hz, 1.1 kW 230 V 3/N/PE 50/60 Hz, 1.1 kW 230 V 1/N/PE 50/60 Hz

Categories:

The UDTJ-150 egg centrifuge is an automatic machine WITH  30 000 eggs/hour

. After filling the hopper with eggs, the eggs are cracked and the eggshells are filtered out with the use of a special rotating filter with a mesh size of 0.8 mm [0.031 in.]. Clean egg liquid is then transported to a placed container, and eggshells are automatically removed from the machine. The machine consists of a housing, the drive unit, hopper, tank, snail conveyor and sieve. The shells are ejected from the machine automatically with the help of a shell extraction mechanism through additional outlet mounted to the hopper.



The machine should be cleaned every day after work, first unplugging the hopper by removing the sieve, shell extraction mechanism and removing the upper tank. Dismantled parts you wash under running water, while the lower part containing the drive unit, can be wiped with a damp sponge. This part of the machine is usually not contaminated.
